Canon imagePROGRAF TC-21M wide-format ink tank printer review
Why you can trust TechRadar
We spend hours testing every product or service we review, so you can be sure you’re buying the best. Find out more about how we test.
The Canon imagePROGRAF TC-21M is a large-format printer with a difference; it can also scan and copy. By adding a flatbed scanner to a 24-inch ink tank printer, Canon has created a three-in-one device that could prove indispensable for schools or small businesses wanting to enlarge prints quickly and affordably, or print posters at the point of sale without a PC.
This unique multifunction device can print on cut paper up to LTR or A4 size, or produce banners and personalized wrapping paper on 24-inch wide rolls. With its integrated scanner, you can do more than just copy documents; enlarging graphics such as maps or CAD drawings into A0-size posters can be done via the printer’s own touchscreen interface.
Is it one of the best large format printers? I put it to the test.
Canon imagePROGRAF TC-21M: Design and build
Image 1 of 3
Specs
Type: large format color multifunction inkjet printer
Functions: Print, scan, copy
Connectivity: Ethernet, USB, Wi-Fi
Data storage slots: USB Host
Print speed: A3+ in 4min 15sec
Max paper size: 24-inch roll
Print quality: 2,400 x 1,200 dpi
Memory: 1GB
Apple AirPrint: yes
Consumables included: 4 x 70ml ink bottles
Dimensions/Weight: 968 x 533 x 245 mm (WxDxH)/31.7lb/34kg

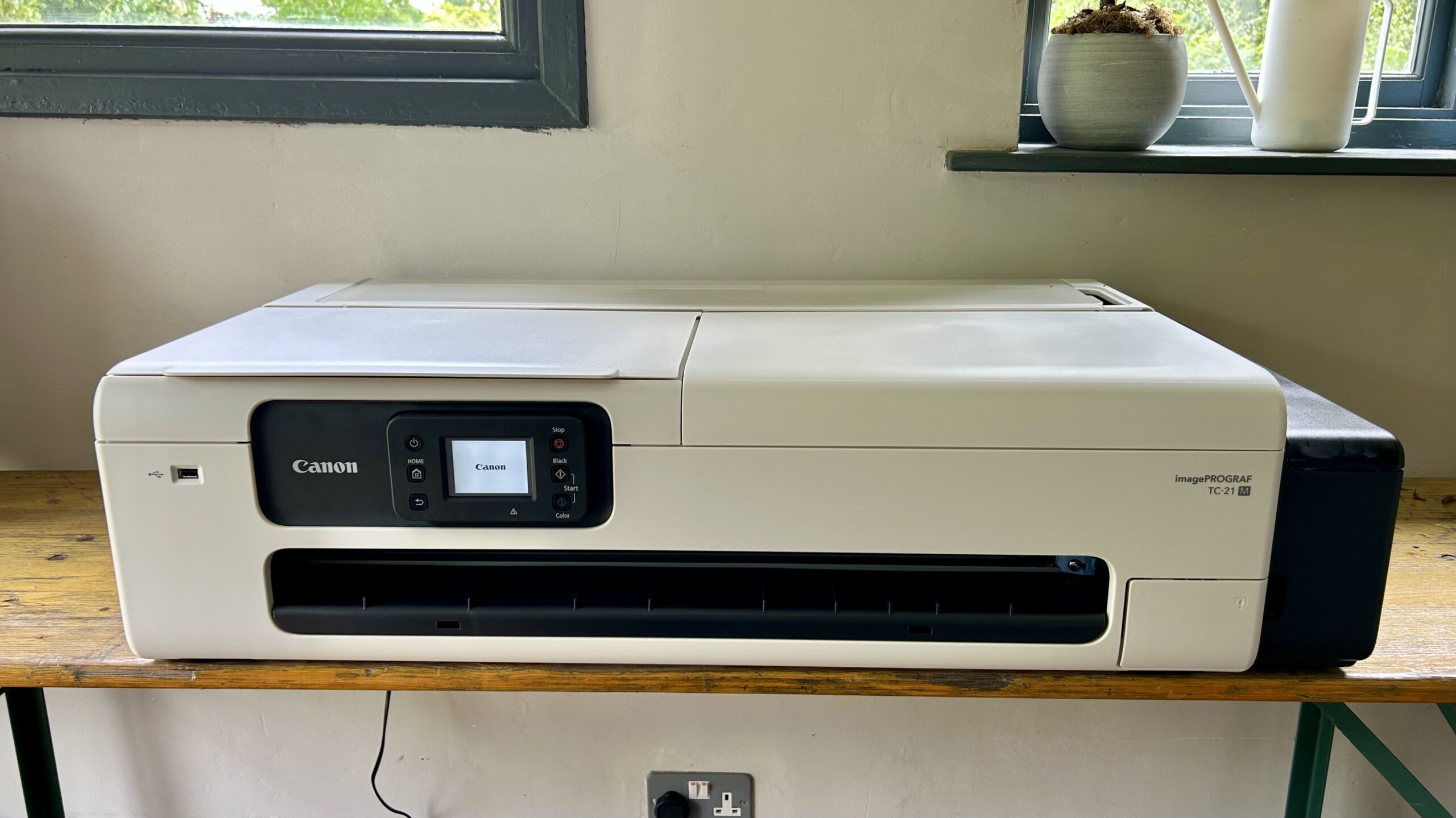

The user-friendly design has the same chunky appeal as Canon’s other professional MegaTank models, with the rounded off white plastic casing and large tilting touchscreen display.
It’s quite a large unit because the 24-inch paper roll fits neatly inside where it’s kept clean and dust-free. The four ink reservoirs add to the bulk, but given its broad functionality, I’d say this printer is pretty compact.
The A4 scanner platen adds nothing to the size when you compare the multifunction imagePROGRAF TC-21M with the otherwise identical print-only version called imagePROGRAF TC-21, without the ‘M’ for multifunction.
Canon imagePROGRAF TC-21M: Features & specifications
Image 1 of 3
This is a three-in-one device so you can print, scan and copy. There’s no fax, but it has plenty of other features, enriched by its wide format capabilities. Naturally, it has Wi-Fi with AirPrint, Mopria and Chrome OS compatibility, but it can also enlarge A4 or smaller documents up to A0, or repeat the scanned image to produce banners or wrapping paper on the paper roll.
Alternatively, you can shrink your scans down to make name tags or business cards. Basically, this versatile machine has a much longer list of paper size options than your average wide-format printer.
There’s room for 100 sheets of plain letter or A4 paper in the main tray, while larger sheets of cut paper are loaded one at a time. The internal roll holder will take anything up to 24-inches wide. There’s no output tray to collect your prints, unless you buy the optional stand with integrated basket for around US$180 (£140).
There’s no auto duplex mode either, but there is a USB Host port beside the touchscreen display for a convenient way of printing to, or scanning from a thumb drive.
Canon imagePROGRAF TC-21M: Setup and operation
Image 1 of 2
Getting your new Canon imagePROGRAF TC-21M started is much like installing any inkjet printer, except that it takes two to lift it onto the table. There’s also the extra time needed to fit a roll or paper, but the shaftless roll holder makes this quite easy.
The box includes four 70ml bottles of ink which pour into the tanks on the right hand side and the keyed bottle spouts make it impossible to fill the wrong tank.
The touchscreen simplifies the setup procedure by telling you what to do next. It’s even quicker to download Canon’s Print app onto your smartphone and use that to connect it to your local Wi-Fi network. The app also makes it easy to print and scan remotely, or check the printer’s status and ink levels.
Canon imagePROGRAF TC-21M: Performance
The Canon imagePROGRAF TC-21M printed without a hitch and only suffered one A4 paper jam during my tests, which was easily rectified. Overall, it scored highly on ease-of-use and print quality. It takes nearly two minutes to print an A1 poster in standard quality, so it’s not fast, but the results are very good. It also has a draft mode which almost doubles the print speed and the slightly paler print quality is fine for gift paper and the like.
Canon’s single bubble jet printhead has a total of 4,352 nozzles spraying its four pigment inks onto the paper and producing detailed prints at 1,200 x 2,400 dpi resolution. It’s equally adept at printing color documents on A4 paper, as it is on A1.
The four colors look bright and being pigment-based, they dry quickly for smudge-resident and longer lasting results. This is perfect for large maps, CAD drawings and poster-sized graphics, where the vivid colors look pleasing vibrant on plain paper.
With coated photo paper, you still get bright and detailed images, but unsurprisingly, it doesn’t achieve the wide color gamut and natural shading of photo printers like the 12-ink Canon imagePROGRAF PRO-1100. It’s certainly good enough to say that the Canon imagePROGRAF TC-21M has strong all-round print quality.
The CIS scanner worked well and made it possible to blow up A4 test documents to A1 size without any real loss of detail. I can see how this application would be useful in a shop, or school setting where posters can be produced without the need of a PC.
I found it quite easy to use the printers touchscreen to turn a test scan into a repeated pattern that could be used as wrapping paper. I did the same thing using Canon’s PosterArt, which is an equally user-friendly piece of software that comes free with the printer.
The only slight problem I had was a practical one. Without the optional stand or any extendable flap to collect each printout, you have to catch each print as it emerges and before the internal cutter sweeps across to dump them on the floor. Easily solved by moving the printer to a bigger table.
Canon imagePROGRAF TC-21M: Consumables
As a refillable ink tank printer, the Canon imagePROGRAF TC-21M is potentially very economical to run, which is important in a printer designed for running out such large prints.
The box includes four 70ml bottles, which is roughly enough ink for around 6,000 letter or A4 pages. While a replacement Canon PFI-050 multipack is significantly cheaper than cartridge ink, it’s quite expensive for bottled ink.
I found compatible pigment ink tended to be around a quarter the price of Canon-branded ink.
Canon imagePROGRAF TC-21M: Maintenance
Being an inkjet, the Canon imagePROGRAF TC-21M is prone to drying out and suffering clogged nozzles if left unused, but this can usually be solved by simply running a maintenance cycle.
Just enter the printer’s on-screen settings and choose one of the cleaning cycles to flush the nozzles. Further down the line, you may need to replace the PF-08 printhead and MC-32 maintenance cartridge, both of which are reasonably priced by Canon.
Canon imagePROGRAF TC-21M: Final verdict
I enjoyed turning out bright poster-sized prints and banners with the Canon imagePROGRAF TC-21M simply by blowing up images on its integrated scanner. It proved to be a very versatile product with its wide paper size compatibility and two input options.
The touchscreen interface and bundled PosterArtist software ensure it’s easy to use, and with the scanner, front USB port and Wi-Fi with AirPrint compatibility, it’s pretty well featured.
No, it can’t auto-duplex and it’s better with graphics and line drawing than photos, but otherwise, the strong print quality, and the affordability of its bottled ink will make this an essential accessory in many a shop, school or studio.
For more print solutions, I’ve comprehensively tested the best small business printers and best home printers.
